50-颜色混合算法与代码实现

回顾

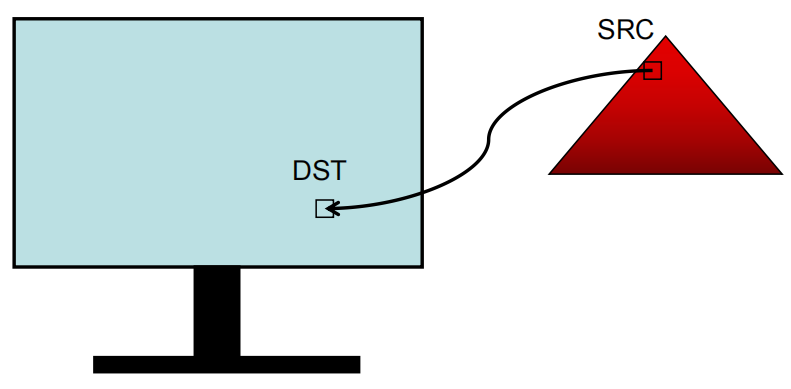

在绘制透明或者半透明物体时，需要将当前物体生成的像素与画布上已有的像素做计算，得到新的像素颜色值的过程

混合方式

每个像素由RGBA构成，其中Alpha(0-1)通道就记录了当前颜色的透明度，那么可以如下计算最终像素：

此时,srcAlpha就代表了当前颜色占最终颜色的比重，越大越明显

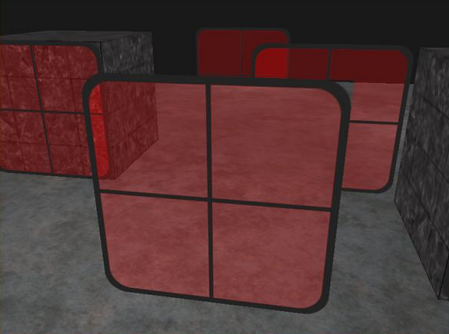

混合绘制次序

先绘制不透明物体，保证底色正确；
从后往前绘制半透明物体，保证近距离透明物体不会遮挡远距离透明物体（按摄像机距离排序）

代码实现

内容：
1、颜色混合状态
2、颜色混合加入绘制流程
3、示例

gpu.h

class GPU {
public:
	static GPU* getInstance();
	GPU();

	~GPU();

	//接受外界传入的bmp对应的内存指针以及窗体的宽/高
	void initSurface(const uint32_t& width, const uint32_t& height, void* buffer = nullptr);

	//清除画布内容
	void clear();

	//打印状态机
	void printVAO(const uint32_t& vaoID);

	uint32_t genBuffer();
	void deleteBuffer(const uint32_t& bufferID);
	void bindBuffer(const uint32_t& bufferType, const uint32_t& bufferID);
	void bufferData(const uint32_t& bufferType, size_t dataSize, void* data);

	uint32_t genVertexArray();
	void deleteVertexArray(const uint32_t& vaoID);
	void bindVertexArray(const uint32_t& vaoID);
	void vertexAttributePointer(
		const uint32_t& binding,
		const uint32_t& itemSize,
		const uint32_t& stride,
		const uint32_t& offset);

	void useProgram(Shader* shader);

	void enable(const uint32_t& value);

	void disable(const uint32_t& value);

	//cull face
	void frontFace(const uint32_t& value);

	void cullFace(const uint32_t& value);

	//depth test
	void depthFunc(const uint32_t& depthFunc);

	void depthWrite(bool value);

	void drawElement(const uint32_t& drawMode, const uint32_t& first, const uint32_t& count);

private:
	void vertexShaderStage(
		std::vector<VsOutput>& vsOutputs,
		const VertexArrayObject* vao,
		const BufferObject* ebo,
		const uint32_t first,
		const uint32_t count);

	void perspectiveDivision(VsOutput& vsOutput);
	void perspectiveRecover(VsOutput& vsOutput);
	void screenMapping(VsOutput& vsOutput);

	void trim(VsOutput& vsOutput);

	bool depthTest(const FsOutput& output);

	RGBA blend(const FsOutput& output);//颜色混合<-------------------------------+

private:
	static GPU* mInstance;
	FrameBuffer* mFrameBuffer{ nullptr };

	//VBO相关/EBO也存在内部
	uint32_t mCurrentVBO{ 0 };
	uint32_t mCurrentEBO{ 0 };
	uint32_t mBufferCounter{ 0 };
	std::map<uint32_t, BufferObject*> mBufferMap;

	//VAO相关
	uint32_t mCurrentVAO{ 0 };
	uint32_t mVaoCounter{ 0 };
	std::map<uint32_t, VertexArrayObject*> mVaoMap;

	Shader* mShader{ nullptr };
	math::mat4f mScreenMatrix;

	//cull face
	bool mEnableCullFace{ true };
	uint32_t mFrontFace{ FRONT_FACE_CCW };
	uint32_t mCullFace{ BACK_FACE };

	//depth
	bool mEnableDepthTest{ true };
	bool mEnableDepthWrite{ true };
	uint32_t mDepthFunc{ DEPTH_LESS };

	//blending
	bool mEnableBlending{ false };//是否开启颜色混合<-------------------------------+
};

gpu.cpp

void GPU::enable(const uint32_t& value) {
	switch (value)
	{
	case CULL_FACE:
		mEnableCullFace = true;
		break;
	case DEPTH_TEST:
		mEnableDepthTest = true;
		break;
	case BLENDING:
		mEnableBlending = true;//添加颜色混合及开启选项<-------------------------------+
		break;
	default:
		break;
	}
}

void GPU::disable(const uint32_t& value) {
	switch (value)
	{
	case CULL_FACE:
		mEnableCullFace = false;
		break;
	case DEPTH_TEST:
		mEnableDepthTest = false;
		break;
	case BLENDING:
		mEnableBlending = false;
		break;
	default:
		break;
	}
}

RGBA GPU::blend(const FsOutput& output) {//颜色混合<-------------------------------+
	RGBA result;

	uint32_t pixelPos = output.mPixelPos.y * mFrameBuffer->mWidth + output.mPixelPos.x;
	RGBA dst = mFrameBuffer->mColorBuffer[pixelPos];
	RGBA src = output.mColor;

	float weight = static_cast<float>(src.mA) / 255.0f;

	result.mR = static_cast<float>(src.mR) * weight + static_cast<float>(dst.mR) * (1.0f - weight);
	result.mG = static_cast<float>(src.mG) * weight + static_cast<float>(dst.mG) * (1.0f - weight);
	result.mB = static_cast<float>(src.mB) * weight + static_cast<float>(dst.mB) * (1.0f - weight);
	result.mA = static_cast<float>(src.mA) * weight + static_cast<float>(dst.mA) * (1.0f - weight);

	return result;
}

绘制流程中增加颜色混合

gpu.cpp

void GPU::drawElement(const uint32_t& drawMode, const uint32_t& first, const uint32_t& count) {
    if (mCurrentVAO == 0 || mShader == nullptr || count == 0) {
        return;
    }

    //1 get vao
    auto vaoIter = mVaoMap.find(mCurrentVAO);
    if (vaoIter == mVaoMap.end()) {
        std::cerr << "Error: current vao is invalid!" << std::endl;
        return;
    }

    const VertexArrayObject* vao = vaoIter->second;
    auto bindingMap = vao->getBindingMap();

    //2 get ebo
    auto eboIter = mBufferMap.find(mCurrentEBO);
    if (eboIter == mBufferMap.end()) {
        std::cerr << "Error: current ebo is invalid!" << std::endl;
        return;
    }

    const BufferObject* ebo = eboIter->second;

    /*
    * VertexShader处理阶段
    * 作用：
    *      按照输入的EBO的index顺序来处理顶点，
    *      依次通过vsShader得到的输出结果按序放入vsOutputs中
    */
    std::vector<VsOutput> vsOutputs{};
    vertexShaderStage(vsOutputs, vao, ebo, first, count);

    if (vsOutputs.empty()) return;

    /*
    * Clip Space剪裁处理阶段
    * 作用：
    *      在剪裁空间，对所有输出的图元进行剪裁拼接等
    *      后面的处理阶段都使用剪裁结果clipOutputs来处理
    */
    std::vector<VsOutput> clipOutputs{};
    Clipper::doClipSpace(drawMode, vsOutputs, clipOutputs);
    if (clipOutputs.empty()) return;

    vsOutputs.clear();

    /*
    * NDC处理阶段
    * 作用：
    *      将顶点转化到NDC下
    */
    for (auto& output : clipOutputs) {
        perspectiveDivision(output);//透视除法,除以W
    }

    /*
    * 背面剔除阶段
    * 作用：
    *      背向我们的三角形需要剔除
    */
	std::vector<VsOutput> cullOutputs = clipOutputs;
	if (drawMode == DRAW_TRIANGLES && mEnableCullFace) {
		cullOutputs.clear();
		for (uint32_t i = 0; i < clipOutputs.size() - 2; i += 3) {
			if (Clipper::cullFace(mFrontFace, mCullFace, clipOutputs[i], clipOutputs[i + 1], clipOutputs[i + 2])) {
				auto start = clipOutputs.begin() + i;
				auto end = clipOutputs.begin() + i + 3;
				cullOutputs.insert(cullOutputs.end(), start, end);
			}
		}
	}

    /*
    * 屏幕映射处理阶段
    * 作用：
    *      将NDC下的点通过screenMatrix，转换到屏幕空间
    */
    for (auto& output : cullOutputs) {
        screenMapping(output);
    }

    /*
    * 光栅化处理阶段
    * 作用：
    *      离散出所有需要的Fragment
    */
    std::vector<VsOutput> rasterOutputs;
    Raster::rasterize(rasterOutputs, drawMode, cullOutputs);


    if (rasterOutputs.empty()) return;

	 /*
    * 透视恢复阶段
    * 作用：
    *      离散出来的像素插值结果，需要乘以自身的w值恢复到正常状态
    */
	for (auto& output : rasterOutputs) {
		perspectiveRecover(output);
	}

    /*
    * 颜色输出处理阶段
    * 作用：
    *      将颜色进行输出
    */
    FsOutput fsOutput;
	uint32_t pixelPos = 0;
	for (uint32_t i = 0; i < rasterOutputs.size(); ++i) {
		mShader->fragmentShader(rasterOutputs[i], fsOutput);
		pixelPos = fsOutput.mPixelPos.y * mFrameBuffer->mWidth + fsOutput.mPixelPos.x;

		//深度测试
		if (mEnableDepthTest && !depthTest(fsOutput)) {
			continue;//丢弃未通过深度测试的像素点（被遮挡）
		}

		RGBA color = fsOutput.mColor;
		if (mEnableBlending) {
			color = blend(fsOutput);// 颜色混合<-----------------------------------------------------------------+
		}

		mFrameBuffer->mColorBuffer[pixelPos] = color;
	}
}

示例(绘制三个前后位置的三角形叠加透明效果)

uint32_t WIDTH = 800;
uint32_t HEIGHT = 600;

//两个三角形，三个属性对应vbo
uint32_t positionVbo0 = 0;
uint32_t positionVbo1 = 0;
uint32_t positionVbo2 = 0;

uint32_t colorVbo0 = 0;
uint32_t colorVbo1 = 0;
uint32_t colorVbo2 = 0;

uint32_t uvVbo = 0;

//三角形的indices
uint32_t ebo = 0;

//两个三角形专属vao
uint32_t vao0 = 0;
uint32_t vao1 = 0;
uint32_t vao2 = 0;

//使用的Shader
DefaultShader* shader = nullptr;

//mvp变换矩阵
math::mat4f modelMatrix;
math::mat4f viewMatrix;
math::mat4f perspectiveMatrix;


float angle = 0.0f;
float cameraZ = 2.0f;
void transform() {
	//angle += 0.01f;
	//cameraZ -= 0.01f;

	//模型变换
	modelMatrix = math::rotate(math::mat4f(1.0f), angle, math::vec3f{ 0.0f, 1.0f, 0.0f });

	//视图变换
	auto cameraModelMatrix = math::translate(math::mat4f(1.0f), math::vec3f{ 0.0f, 0.0f, cameraZ });
	viewMatrix = math::inverse(cameraModelMatrix);
}

void render() {
	transform();
	shader->mModelMatrix = modelMatrix;
	shader->mViewMatrix = viewMatrix;
	shader->mProjectionMatrix = perspectiveMatrix;

	sgl->clear();
	sgl->useProgram(shader);

	//非透明物体必须先绘制，z为-0.8
	sgl->bindVertexArray(vao1);
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, ebo);
	sgl->drawElement(DRAW_TRIANGLES, 0, 3);

	//透明物后绘制,z为-0.5
	sgl->bindVertexArray(vao2);
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, ebo);
	sgl->drawElement(DRAW_TRIANGLES, 0, 3);

	//透明物后绘制,z为0
	sgl->bindVertexArray(vao0);
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, ebo);
	sgl->drawElement(DRAW_TRIANGLES, 0, 3);

}

void prepare() {
	shader = new DefaultShader();

	perspectiveMatrix = math::perspective(60.0f, (float)WIDTH / (float)HEIGHT, 0.1f, 100.0f);

	auto cameraModelMatrix = math::translate(math::mat4f(1.0f), math::vec3f{ 0.0f, 0.0f, cameraZ });
	viewMatrix = math::inverse(cameraModelMatrix);

	sgl->enable(CULL_FACE);
	sgl->frontFace(FRONT_FACE_CCW);
	sgl->cullFace(BACK_FACE);

	sgl->enable(BLENDING);


	//第一个三角形
	float positions0[] = {
		-0.5f, 0.0f, 0.0f,
		0.5f, 0.0f, 0.0f,
		0.25f, 0.5f, 0.0f,
	};

	float colors0[] = {
		1.0f, 0.0f, 0.0f, 0.3f,
		0.0f, 1.0f, 0.0f, 0.3f,
		0.0f, 0.0f, 1.0f, 0.3f,
	};

	//第二个三角形
	float positions1[] = {
		0.3f, 0.0f, -0.8f,
		0.8f, 0.0f, -0.8f,
		0.45f, 0.5f, -0.8f,
	};

	float colors1[] = {
		1.0f, 1.0f, 0.0f, 1.0f,
		1.0f, 1.0f, 0.0f, 1.0f,
		1.0f, 1.0f, 0.0f, 1.0f,
	};

	//第三个三角形
	float positions2[] = {
		0.5f, 0.0f, -0.5f,
		1.0f, 0.0f, -0.5f,
		0.75f, 0.5f, -0.5f,
	};

	float colors2[] = {
		0.0f, 0.0f, 1.0f, 0.5f,
		0.0f, 0.0f, 1.0f, 0.5f,
		0.0f, 0.0f, 1.0f, 0.5f,
	};

	float uvs[] = {
		0.0f, 0.0f,
		0.0f, 1.0f,
		1.0f, 0.0f,
	};

	uint32_t indices[] = { 0, 1, 2 };

	//生成indices对应ebo, 二者公用
	ebo = sgl->genBuffer();
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, ebo);
	sgl->bufferData(ELEMENT_ARRAY_BUFFER, sizeof(uint32_t) * 3, indices);
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, 0);

	//生成uv对应的vbo，二者公用
	 uvVbo = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, uvVbo);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 6, uvs);
	sgl->bindBuffer(ARRAY_BUFFER, 0);

	//生成vao并且绑定
	vao0 = sgl->genVertexArray();
	sgl->bindVertexArray(vao0);

	//position0
	positionVbo0 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, positionVbo0);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 9, positions0);
	sgl->vertexAttributePointer(0, 3, 3 * sizeof(float), 0);

	//color0
	colorVbo0 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, colorVbo0);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 12, colors0);
	sgl->vertexAttributePointer(1, 4, 4 * sizeof(float), 0);

	//uv
	sgl->bindBuffer(ARRAY_BUFFER, uvVbo);
	sgl->vertexAttributePointer(2, 2, 2 * sizeof(float), 0);

	sgl->bindBuffer(ARRAY_BUFFER, 0);
	sgl->bindVertexArray(0);


	//生成vao并且绑定
	vao1 = sgl->genVertexArray();
	sgl->bindVertexArray(vao1);

	//position1
	positionVbo1 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, positionVbo1);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 9, positions1);
	sgl->vertexAttributePointer(0, 3, 3 * sizeof(float), 0);

	//color0
	colorVbo1 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, colorVbo1);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 12, colors1);
	sgl->vertexAttributePointer(1, 4, 4 * sizeof(float), 0);

	//uv
	sgl->bindBuffer(ARRAY_BUFFER, uvVbo);
	sgl->vertexAttributePointer(2, 2, 2 * sizeof(float), 0);

	sgl->bindBuffer(ARRAY_BUFFER, 0);
	sgl->bindVertexArray(0);

	//生成vao并且绑定
	vao2 = sgl->genVertexArray();
	sgl->bindVertexArray(vao2);

	//position1
	positionVbo2 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, positionVbo2);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 9, positions2);
	sgl->vertexAttributePointer(0, 3, 3 * sizeof(float), 0);

	//color0
	colorVbo2 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, colorVbo2);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 12, colors2);
	sgl->vertexAttributePointer(1, 4, 4 * sizeof(float), 0);

	//uv
	sgl->bindBuffer(ARRAY_BUFFER, uvVbo);
	sgl->vertexAttributePointer(2, 2, 2 * sizeof(float), 0);

	sgl->bindBuffer(ARRAY_BUFFER, 0);
	sgl->bindVertexArray(0);
}

int APIENTRY wWinMain(
	_In_ HINSTANCE hInstance,		//本应用程序实例句柄，唯一指代当前程序
	_In_opt_ HINSTANCE hPrevInstance,	//本程序前一个实例，一般是null
	_In_ LPWSTR    lpCmdLine,		//应用程序运行参数
	_In_ int       nCmdShow)		//窗口如何显示（最大化、最小化、隐藏），不需理会
{
	if (!app->initApplication(hInstance, WIDTH, HEIGHT)) {
		return -1;
	}

	//将bmp指向的内存配置到sgl当中
	sgl->initSurface(app->getWidth(), app->getHeight(), app->getCanvas());

	prepare();

	bool alive = true;
	while (alive) {
		alive = app->peekMessage();
		render();
		app->show();
	}

	delete shader;

	return 0;
}
