49-深度测试算法与代码实现

问题分析：

在绘制两个三角形的过程中，系统如何决定谁遮挡谁？

之前我们的设计是画家算法，即最早渲染的被最新渲染的遮挡，但不按照由远到近的顺序绘制时，就得不到我们像要的效果，如何直接根据图形的远近设置他们是否被遮挡，我们需要深度测试算法

深度

在屏幕空间变换后，我们得到的每个顶点的z坐标即顶点深度；在经过光栅化后得到的每个像素中都记录则经过插值的搭配的z值，即像素的深度值，用于描述当前像素距观察点有多远
深度取值范围是0-1

深度检测： 对于当前像素，都需要跟画布已有的像素深度值进行对比，如果被挡住则丢弃；如果靠前则保留

深度缓存：跟画布一样分辨率大小的内存空间，用于记录画布上已经绘制的每个像素的深度值

深度测试算法解析

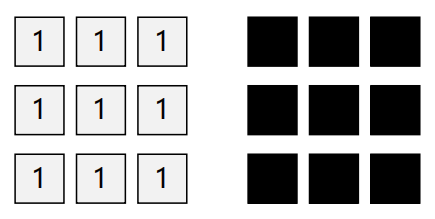

深度缓存与颜色缓存分辨率一致，初始化为1.0f

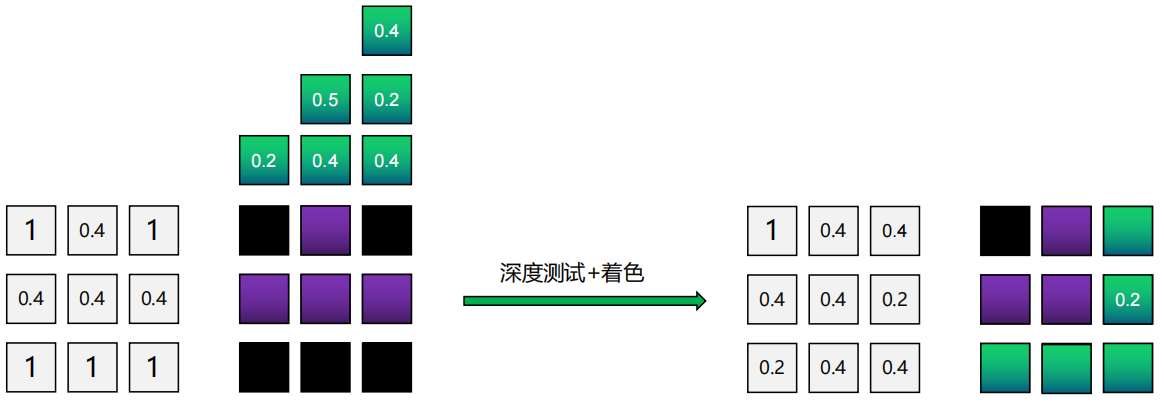

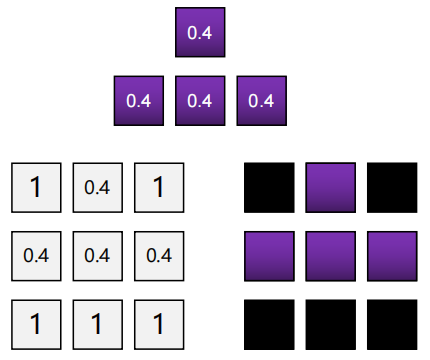

三角形每个像素深度值与深度缓存中对应深度值对比；
如果三角形像素深度值较小（接近观测点）则通过测试；
通过测试的像素，使用新的像素深度值覆盖对应的深度值；
通过测试的像素，可以绘制到颜色缓存

API设计

深度检测可配置参数较多，我们只选取深度对比函数进行编写：
DEPTH_LESS: 代表比现存深度小才能通过检测
DEPTH_GREATER: 代表比现存深度大才能通过检测

代码实现

内容：
1、FrameBuffer加入深度缓存
2、GPU加入深度测试状态，clear中清除深度缓存
3、绘制流程加入深度测试
4、示例

frameBuffer.h

#pragma once
#include "../global/base.h"

/*
* class FrameBuffer：
* 存储当前画布对应的bmp的内存指针，作为当前绘图画板
*/
class FrameBuffer {
public:
	FrameBuffer(uint32_t width, uint32_t height, void* buffer = nullptr);
	~FrameBuffer();
	FrameBuffer(const FrameBuffer&) = delete;//不准拷贝复制

	uint32_t	mWidth{ 0 };
	uint32_t	mHeight{ 0 };
	RGBA*		mColorBuffer{ nullptr };
	float*		mDepthBuffer{ nullptr };//深度缓存<-------------------------------+
	bool		mExternBuffer{ false };
};

frameBuffer.cpp

#include "frameBuffer.h"

FrameBuffer::FrameBuffer(uint32_t width, uint32_t height, void* buffer) {
	mWidth = width;
	mHeight = height;

	if (!buffer) {
		buffer = new RGBA[width * height];
		mExternBuffer = false;
	}
	else {
		mExternBuffer = true;
	}

	mColorBuffer = (RGBA*)buffer;

	mDepthBuffer = new float[width * height];
	std::fill_n(mDepthBuffer, width * height, 1.0f);//深度缓存初始化为1.0f
}

FrameBuffer::~FrameBuffer() {
	if (!mExternBuffer && mColorBuffer) {
		delete[] mColorBuffer;
	}

	if (mDepthBuffer) {
		delete[] mDepthBuffer;
	}
}

base.h

#pragma once

#include<iostream>
#include<vector>
#include<map>
#include<cmath>
#include<assert.h>

#define PI					3.14159265358979323
#define DEG2RAD(theta)		(0.01745329251994329 * (theta))
#define FRACTION(v)			((v) - (int)(v))

using byte = unsigned char;

struct RGBA {
	byte mB;
	byte mG;
	byte mR;
	byte mA;

	RGBA(
		byte r = 255,
		byte g = 255,
		byte b = 255,
		byte a = 255)
	{
		mR = r;
		mG = g;
		mB = b;
		mA = a;
	}
};

#define ARRAY_BUFFER 0
#define ELEMENT_ARRAY_BUFFER 1

#define DRAW_LINES 0
#define DRAW_TRIANGLES 1

#define CULL_FACE 1
#define DEPTH_TEST 2

#define FRONT_FACE 0
#define BACK_FACE 1
#define FRONT_FACE_CW 0
#define FRONT_FACE_CCW 1


#define DEPTH_LESS 0 //<-------------------------------+
#define DEPTH_GREATER 1 //<-------------------------------+

gpu.h

class GPU {
	//... ... ...
	void enable(const uint32_t& value);

	void disable(const uint32_t& value);

    //depth test
	void depthFunc(const uint32_t& depthFunc);

    //... ... ...
private:
	bool depthTest(const FsOutput& output);

private:
    //... ... ...
	//depth
	bool mEnableDepthTest{ true };//是否开启深度检测
	uint32_t mDepthFunc{ DEPTH_LESS };//深度检测条件
};

gpu.cpp

void GPU::enable(const uint32_t& value) {
	switch (value)
	{
	case CULL_FACE:
		mEnableCullFace = true;
		break;
	case DEPTH_TEST://<-------------------------------+是否开启深度检测
		mEnableDepthTest = true;
		break;
	default:
		break;
	}
}

void GPU::disable(const uint32_t& value) {
	switch (value)
	{
	case CULL_FACE:
		mEnableCullFace = false;
		break;
	case DEPTH_TEST:
		mEnableDepthTest = false;//<-------------------------------+是否取消深度检测
		break;
	default:
		break;
	}
}

void GPU::depthFunc(const uint32_t& depthFunc) {
	mDepthFunc = depthFunc;
}

bool GPU::depthTest(const FsOutput& output) {
	uint32_t pixelPos = output.mPixelPos.y * mFrameBuffer->mWidth + output.mPixelPos.x;
	float oldDepth = mFrameBuffer->mDepthBuffer[pixelPos];
	switch (mDepthFunc)
	{
	case DEPTH_LESS:
		if (output.mDepth < oldDepth) {
			mFrameBuffer->mDepthBuffer[pixelPos] = output.mDepth;
			return true;
		}
		else {
			return false;
		}
		break;
	case DEPTH_GREATER:
		if (output.mDepth > oldDepth) {
			mFrameBuffer->mDepthBuffer[pixelPos] = output.mDepth;
			return true;
		}
		else {
			return false;
		}
		break;
	default:
		return false;
		break;
	}

}

绘制流程中增加深度测试

gpu.cpp

void GPU::drawElement(const uint32_t& drawMode, const uint32_t& first, const uint32_t& count) {
    if (mCurrentVAO == 0 || mShader == nullptr || count == 0) {
        return;
    }

    //1 get vao
    auto vaoIter = mVaoMap.find(mCurrentVAO);
    if (vaoIter == mVaoMap.end()) {
        std::cerr << "Error: current vao is invalid!" << std::endl;
        return;
    }

    const VertexArrayObject* vao = vaoIter->second;
    auto bindingMap = vao->getBindingMap();

    //2 get ebo
    auto eboIter = mBufferMap.find(mCurrentEBO);
    if (eboIter == mBufferMap.end()) {
        std::cerr << "Error: current ebo is invalid!" << std::endl;
        return;
    }

    const BufferObject* ebo = eboIter->second;

    /*
    * VertexShader处理阶段
    * 作用：
    *      按照输入的EBO的index顺序来处理顶点，
    *      依次通过vsShader得到的输出结果按序放入vsOutputs中
    */
    std::vector<VsOutput> vsOutputs{};
    vertexShaderStage(vsOutputs, vao, ebo, first, count);

    if (vsOutputs.empty()) return;

    /*
    * Clip Space剪裁处理阶段
    * 作用：
    *      在剪裁空间，对所有输出的图元进行剪裁拼接等
    *      后面的处理阶段都使用剪裁结果clipOutputs来处理
    */
    std::vector<VsOutput> clipOutputs{};
    Clipper::doClipSpace(drawMode, vsOutputs, clipOutputs);
    if (clipOutputs.empty()) return;

    vsOutputs.clear();

    /*
    * NDC处理阶段
    * 作用：
    *      将顶点转化到NDC下
    */
    for (auto& output : clipOutputs) {
        perspectiveDivision(output);//透视除法,除以W
    }

    /*
    * 背面剔除阶段
    * 作用：
    *      背向我们的三角形需要剔除
    */
	std::vector<VsOutput> cullOutputs = clipOutputs;
	if (drawMode == DRAW_TRIANGLES && mEnableCullFace) {
		cullOutputs.clear();
		for (uint32_t i = 0; i < clipOutputs.size() - 2; i += 3) {
			if (Clipper::cullFace(mFrontFace, mCullFace, clipOutputs[i], clipOutputs[i + 1], clipOutputs[i + 2])) {
				auto start = clipOutputs.begin() + i;
				auto end = clipOutputs.begin() + i + 3;
				cullOutputs.insert(cullOutputs.end(), start, end);
			}
		}
	}

    /*
    * 屏幕映射处理阶段
    * 作用：
    *      将NDC下的点通过screenMatrix，转换到屏幕空间
    */
    for (auto& output : cullOutputs) {
        screenMapping(output);
    }

    /*
    * 光栅化处理阶段
    * 作用：
    *      离散出所有需要的Fragment
    */
    std::vector<VsOutput> rasterOutputs;
    Raster::rasterize(rasterOutputs, drawMode, cullOutputs);


    if (rasterOutputs.empty()) return;

	 /*
    * 透视恢复阶段
    * 作用：
    *      离散出来的像素插值结果，需要乘以自身的w值恢复到正常状态
    */
	for (auto& output : rasterOutputs) {
		perspectiveRecover(output);
	}

    /*
    * 颜色输出处理阶段
    * 作用：
    *      将颜色进行输出
    */
    FsOutput fsOutput;
	uint32_t pixelPos = 0;
	for (uint32_t i = 0; i < rasterOutputs.size(); ++i) {
		mShader->fragmentShader(rasterOutputs[i], fsOutput);
		pixelPos = fsOutput.mPixelPos.y * mFrameBuffer->mWidth + fsOutput.mPixelPos.x;

		//深度测试 <-----------------------------------------------------------------+
		if (mEnableDepthTest && !depthTest(fsOutput)) {
			continue;//丢弃未通过深度测试的像素点（被遮挡）
		}

		mFrameBuffer->mColorBuffer[pixelPos] = fsOutput.mColor;
	}
}

示例(绘制两个三角形看遮挡效果)

uint32_t WIDTH = 800;
uint32_t HEIGHT = 600;

//两个三角形，三个属性对应vbo
uint32_t positionVbo0 = 0;
uint32_t positionVbo1 = 0;
uint32_t colorVbo0 = 0;
uint32_t colorVbo1 = 0;

uint32_t uvVbo = 0;

//三角形的indices
uint32_t ebo = 0;

//两个三角形专属vao
uint32_t vao0 = 0;
uint32_t vao1 = 0;

//使用的Shader
DefaultShader* shader = nullptr;

//mvp变换矩阵
math::mat4f modelMatrix;
math::mat4f viewMatrix;
math::mat4f perspectiveMatrix;


float angle = 0.0f;
float cameraZ = 2.0f;
void transform() {
	//angle += 0.01f;
	//cameraZ -= 0.01f;

	//模型变换
	modelMatrix = math::rotate(math::mat4f(1.0f), angle, math::vec3f{ 0.0f, 1.0f, 0.0f });

	//视图变换
	auto cameraModelMatrix = math::translate(math::mat4f(1.0f), math::vec3f{ 0.0f, 0.0f, cameraZ });
	viewMatrix = math::inverse(cameraModelMatrix);
}

void render() {
	transform();
	shader->mModelMatrix = modelMatrix;
	shader->mViewMatrix = viewMatrix;
	shader->mProjectionMatrix = perspectiveMatrix;

	sgl->clear();
	sgl->useProgram(shader);
	sgl->bindVertexArray(vao0);
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, ebo);
	sgl->drawElement(DRAW_TRIANGLES, 0, 3);

	sgl->bindVertexArray(vao1);
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, ebo);
	sgl->drawElement(DRAW_TRIANGLES, 0, 3);
}

void prepare() {
	shader = new DefaultShader();

	perspectiveMatrix = math::perspective(60.0f, (float)WIDTH / (float)HEIGHT, 0.1f, 100.0f);

	auto cameraModelMatrix = math::translate(math::mat4f(1.0f), math::vec3f{ 0.0f, 0.0f, cameraZ });
	viewMatrix = math::inverse(cameraModelMatrix);

	sgl->enable(CULL_FACE);
	sgl->frontFace(FRONT_FACE_CCW);
	sgl->cullFace(BACK_FACE);

	//sgl->disable(DEPTH_TEST);

	//第一个三角形
	float positions0[] = {
		-0.5f, 0.0f, 0.0f,
		0.5f, 0.0f, 0.0f,
		0.25f, 0.5f, 0.0f,
	};

	float colors0[] = {
		1.0f, 0.0f, 0.0f, 1.0f,
		0.0f, 1.0f, 0.0f, 1.0f,
		0.0f, 0.0f, 1.0f, 1.0f,
	};

	//第二个三角形
	float positions1[] = {
		0.3f, 0.0f, -0.3f,
		0.8f, 0.0f, -0.3f,
		0.45f, 0.5f, -0.3f,
	};

	float colors1[] = {
		1.0f, 1.0f, 0.0f, 1.0f,
		1.0f, 1.0f, 0.0f, 1.0f,
		1.0f, 1.0f, 0.0f, 1.0f,
	};

	float uvs[] = {
		0.0f, 0.0f,
		0.0f, 1.0f,
		1.0f, 0.0f,
	};

	uint32_t indices[] = { 0, 1, 2 };

	//生成indices对应ebo, 二者公用
	ebo = sgl->genBuffer();
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, ebo);
	sgl->bufferData(ELEMENT_ARRAY_BUFFER, sizeof(uint32_t) * 3, indices);
	sgl->bindBuffer(ELEMENT_ARRAY_BUFFER, 0);

	//生成uv对应的vbo，二者公用
	 uvVbo = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, uvVbo);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 6, uvs);
	sgl->bindBuffer(ARRAY_BUFFER, 0);

	//生成vao并且绑定
	vao0 = sgl->genVertexArray();
	sgl->bindVertexArray(vao0);

	//position0
	positionVbo0 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, positionVbo0);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 9, positions0);
	sgl->vertexAttributePointer(0, 3, 3 * sizeof(float), 0);

	//color0
	colorVbo0 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, colorVbo0);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 12, colors0);
	sgl->vertexAttributePointer(1, 4, 4 * sizeof(float), 0);

	//uv
	sgl->bindBuffer(ARRAY_BUFFER, uvVbo);
	sgl->vertexAttributePointer(2, 2, 2 * sizeof(float), 0);

	sgl->bindBuffer(ARRAY_BUFFER, 0);
	sgl->bindVertexArray(0);


	//生成vao并且绑定
	vao1 = sgl->genVertexArray();
	sgl->bindVertexArray(vao1);

	//position1
	positionVbo1 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, positionVbo1);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 9, positions1);
	sgl->vertexAttributePointer(0, 3, 3 * sizeof(float), 0);

	//color0
	colorVbo1 = sgl->genBuffer();
	sgl->bindBuffer(ARRAY_BUFFER, colorVbo1);
	sgl->bufferData(ARRAY_BUFFER, sizeof(float) * 12, colors1);
	sgl->vertexAttributePointer(1, 4, 4 * sizeof(float), 0);

	//uv
	sgl->bindBuffer(ARRAY_BUFFER, uvVbo);
	sgl->vertexAttributePointer(2, 2, 2 * sizeof(float), 0);

	sgl->bindBuffer(ARRAY_BUFFER, 0);
	sgl->bindVertexArray(0);
}

int APIENTRY wWinMain(
	_In_ HINSTANCE hInstance,		//本应用程序实例句柄，唯一指代当前程序
	_In_opt_ HINSTANCE hPrevInstance,	//本程序前一个实例，一般是null
	_In_ LPWSTR    lpCmdLine,		//应用程序运行参数
	_In_ int       nCmdShow)		//窗口如何显示（最大化、最小化、隐藏），不需理会
{
	if (!app->initApplication(hInstance, WIDTH, HEIGHT)) {
		return -1;
	}

	//将bmp指向的内存配置到sgl当中
	sgl->initSurface(app->getWidth(), app->getHeight(), app->getCanvas());

	prepare();

	bool alive = true;
	while (alive) {
		alive = app->peekMessage();
		render();
		app->show();
	}

	delete shader;

	return 0;
}
